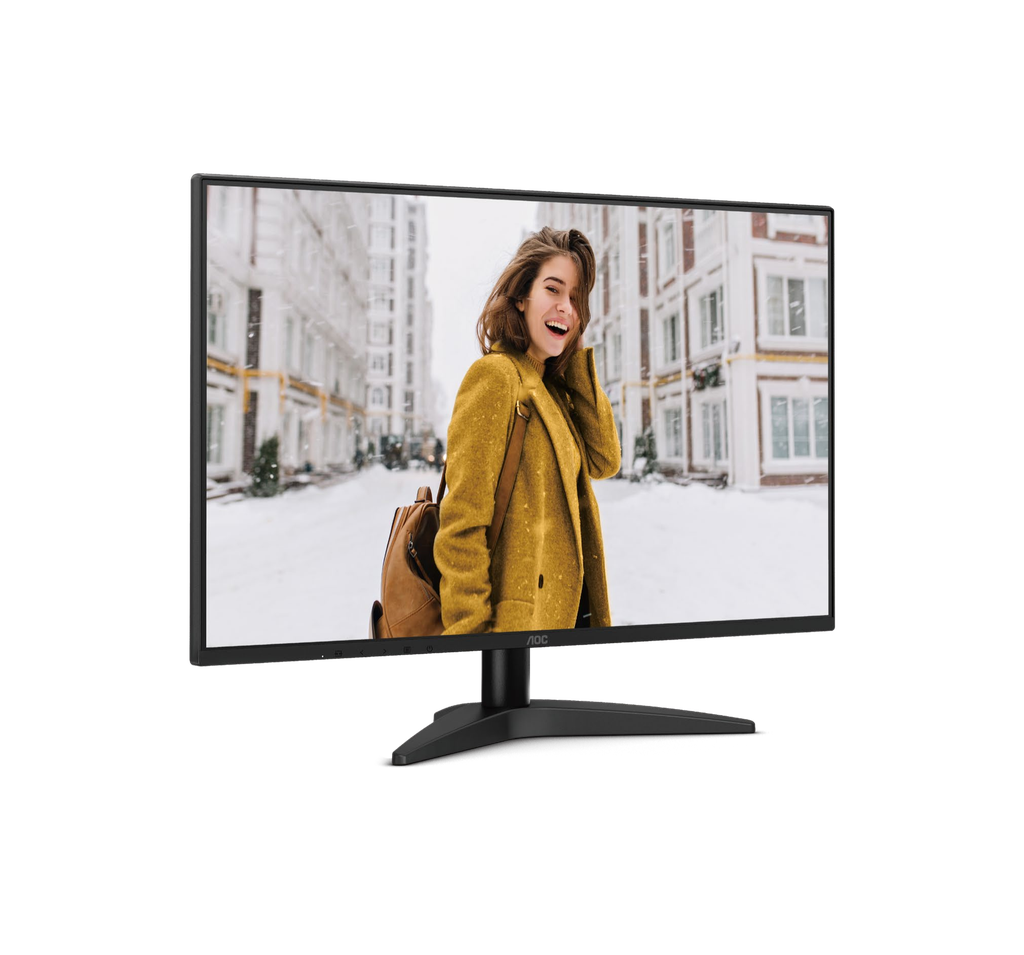

AOC 24" 24B36H Monitor
Product Warranty :
Three Year WarrantyAOC 24" 24B36H Monitor
A 23.8" IPS display with FHD 1920 x 1080 resolution. Refresh rate: 100 Hz. Refer to the specifications for connection and operating-mode limits. Connections: 1 xVGA;1 xHDMI1.4. Stand adjustment: Tilt -5 to23 degrees. Audio: No.
Technical specifications
| Model | 24B36H |
|---|---|
| Panel | 23.8 inches;IPS |
| Pixel Pitch | 0.2745 x0.2745 mm |
| Effective Viewing Area | 527.04 x296.46 mm |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1500:1 typical;Mega DCR |
| Response Time | 4 ms GtG /1 ms MPRT |
| Viewing Angle | 178 degrees horizontal / vertical (CR >10) |
| Color Gamut | NTSC91% (CIE1976);sRGB105% (CIE1931) |
| Optimum Resolution | 1920 x1080 at100 Hz over HDMI;75 Hz over VGA |
| Display Colors | 16.7 Million |
| Signal Input | 1 xVGA;1 xHDMI1.4 |
| USB Hub | No |
| Power Supply | External19V DC;1.31A |
| Typical Power Consumption | 17 W |
| Speakers | No |
| Audio Output | No |
| VESA Wall Mount | 100 x100 mm |
| Stand Adjustment | Tilt -5 to23 degrees |
| Dimensions without Stand (H x W x D) | 316.2 x542.4 x34.7 mm |
| Dimensions with Stand (H x W x D) | 410.0 x542.4 x198.0 mm |
| Package Dimensions (H x W x D) | 381 x612 x93 mm |
| Weight without Stand | 2.15 kg |
| Weight with Stand | 2.40 kg |
| Package Weight | 4.02 kg |
| Screen Size | 23.8" |
| Resolution | FHD 1920 x 1080 |
| Refresh Rate | 100 Hz |
| Panel Type | IPS |
