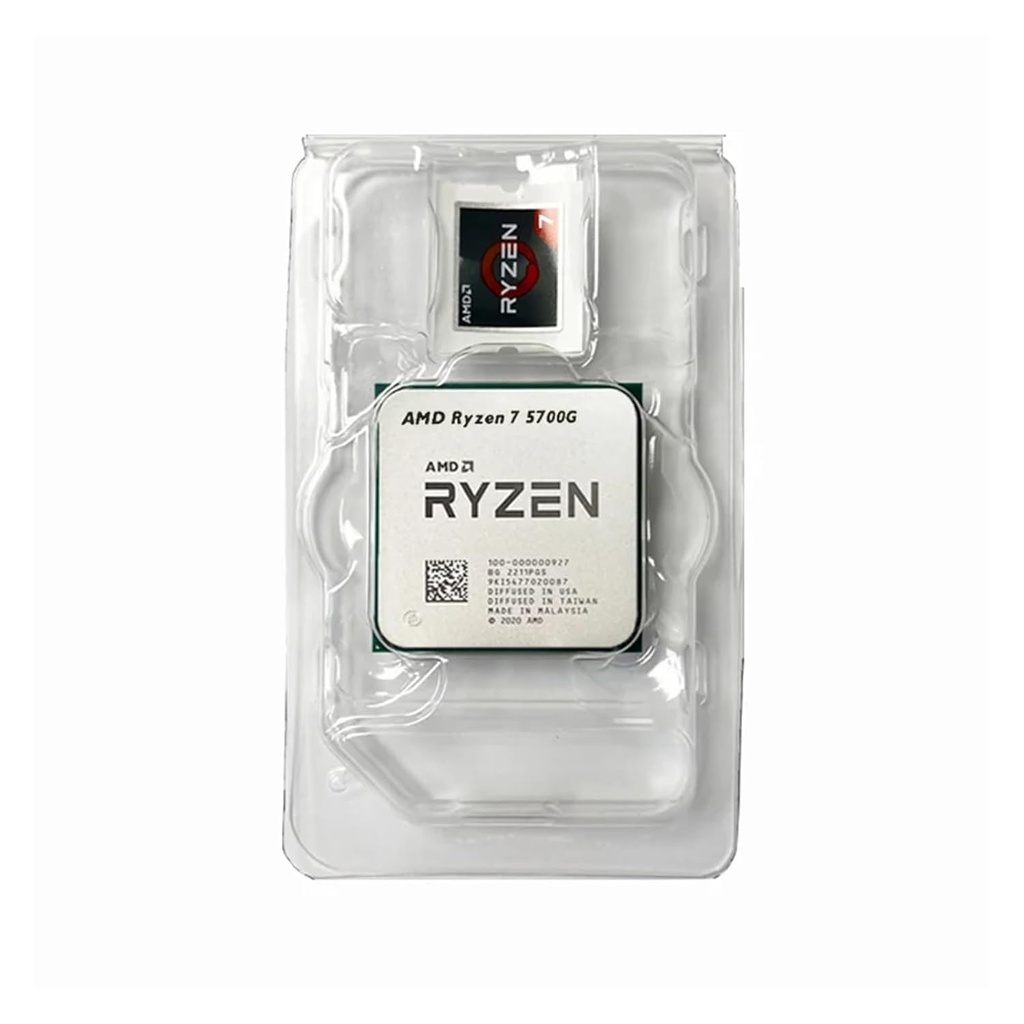

AMD Ryzen 7 5700G with Cooler
Part# / SKU :
100-100000263CBXProduct Warranty :
3 Year WarrantyBarcode :
730143313384AMD Ryzen 7 5700G with Cooler
Ryzen 7 desktop processor with 8 cores and 16 threads for the AM4 socket. Includes processor graphics.
Technical specifications
| Name | AMD Ryzen™ 7 5700G |
|---|---|
| Family | Ryzen |
| Series | Ryzen 5000 Series |
| Former Codename | Cezanne |
| # of CPU Cores | 8 |
| # of Threads | 16 |
| Max. Boost Clock | Up to 4.6 GHz |
| Base Clock | 3.8 GHz |
| L2 Cache | 4 MB |
| L3 Cache | 16 MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Max. Operating Temperature (Tjmax) | 95°C |
| Launch Date | 4/13/2021 |
| *OS Support | Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit, Windows 11 - 64-Bit Edition |
| PCI Express® Version | PCIe® 3.0 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| System Memory Specification | Up to 3200 MT/s |
| Graphics Model | Radeon™ Graphics |
| Graphics Core Count | 8 |
| Graphics Frequency | 2000 MHz |
| Processor family | Ryzen 7 |
| Processor socket | AM4 |
| Processor core count | 8 |
| Processor thread count | 16 |
| Processor graphics capability | Integrated graphics |
| Processor Cores | 8 |
| Processor Graphics | Integrated graphics |
| Processor Threads | 16 |
| Memory Type | DDR4 |
| Supported Chipsets | A520 / B450 / B550 / X570 |
| Graphics Capabilities | AMD Radeon Graphics OnBoard |
