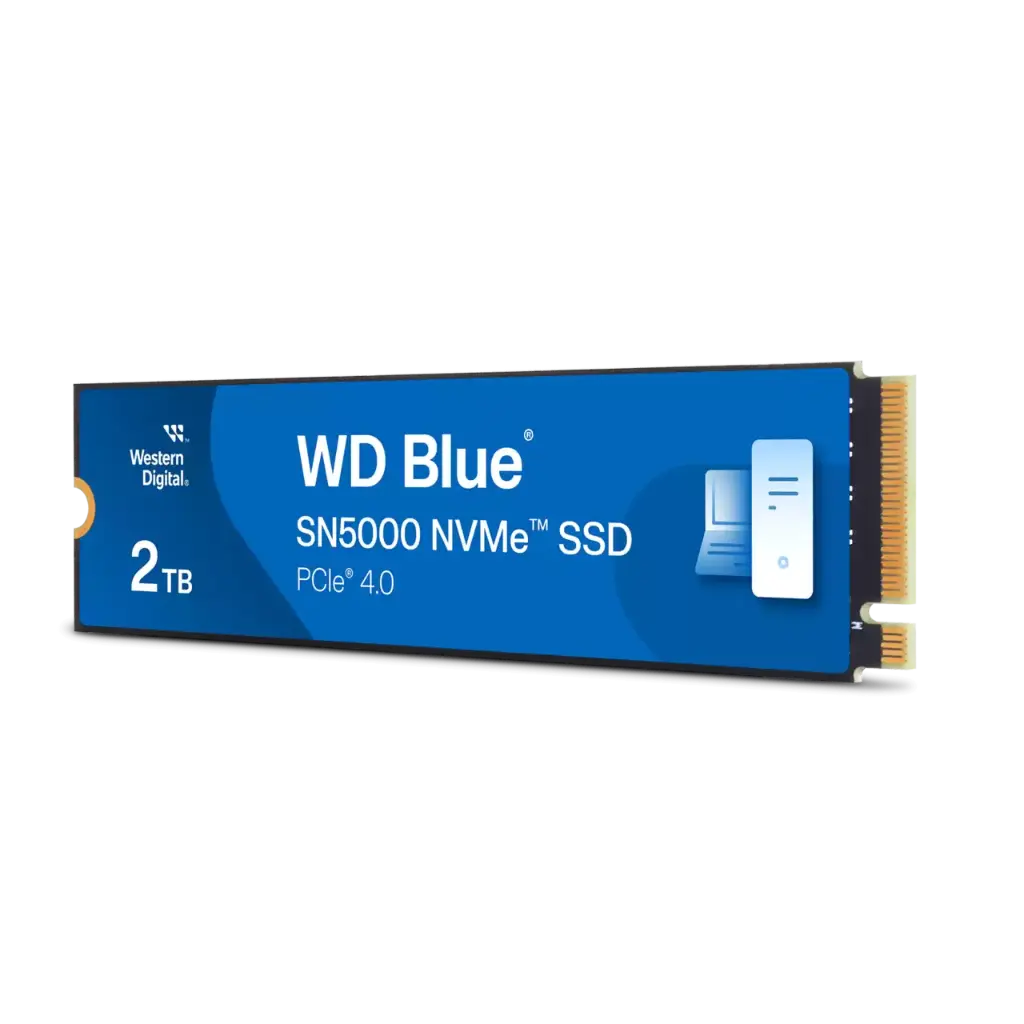

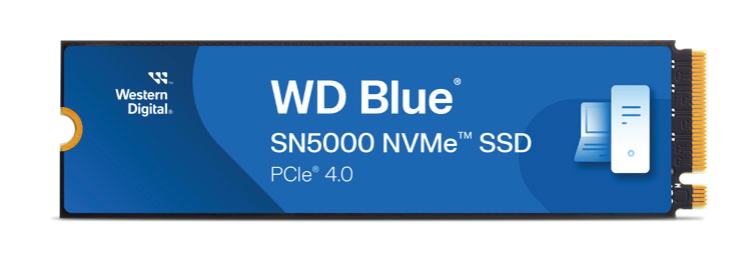

WD SN5000 2TB NVMe Blue PCIe Gen4 SSD
Part# / SKU :
WDS200T4B0EProduct Warranty :
Five Year WarrantyBarcode :
718037893228WD SN5000 2TB NVMe Blue PCIe Gen4 SSD
Capacity: 2TB. Form Factor: M.2 2280. Interface: PCIe Gen4 x4, NVMe.
Technical specifications
| Capacity | 2TB |
|---|---|
| Form factor | M.2 2280 |
| Interface | PCIe Gen4 x4, NVMe |
| Operating temperature | 0°C to85°C; drive-reported temperature, not ambient |
| Storage temperature | -40°C to85°C; non-operational storage does not guarantee data retention |
| Operating vibration | 5gRMS;10-2000Hz;3axes |
| Non-operating vibration | 4.9gRMS;7-800Hz;3axes |
| Shock | 1500G;0.5ms half-sine |
| Performance conditions | Up-to internal-test results; host, workload and firmware can affect measured performance. |
| Endurance conditions | JEDEC client workload JESD219; capacity-specific TBW. |
| NAND | Western Digital3D NAND TLC |
| Sequential read Q32/T1 (up to) | 5150MB/s |
| Sequential write Q32/T1 (up to) | 4850MB/s |
| Random4K read Q32/T16 (up to) | 650000IOPS |
| Random4K write Q32/T16 (up to) | 770000IOPS |
| Endurance (TBW) | 900TB |
| Average active power | 75mW |
| SleepPS5 power | 5mW |
| MTTF | Up to1.75 million hours |
| RoHS compliant | Yes |
| Dimensions | 80±0.15 x22±0.15 x2.38mm |
| Weight | 5.7±0.5g |
| SSD Capacity | 2TB |
| SSD Form Factor | M.2 2280 |
| SSD Interface | PCIe Gen4 x4, NVMe |
| SSD Brand | WD Western Digital |
| SSD Generation | PCIe Gen4 |
