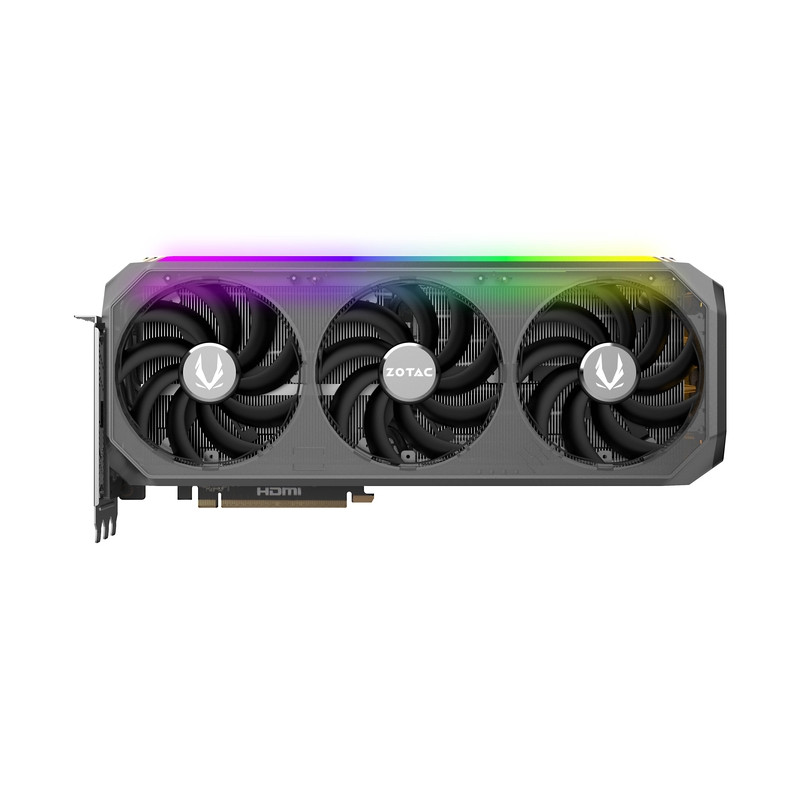

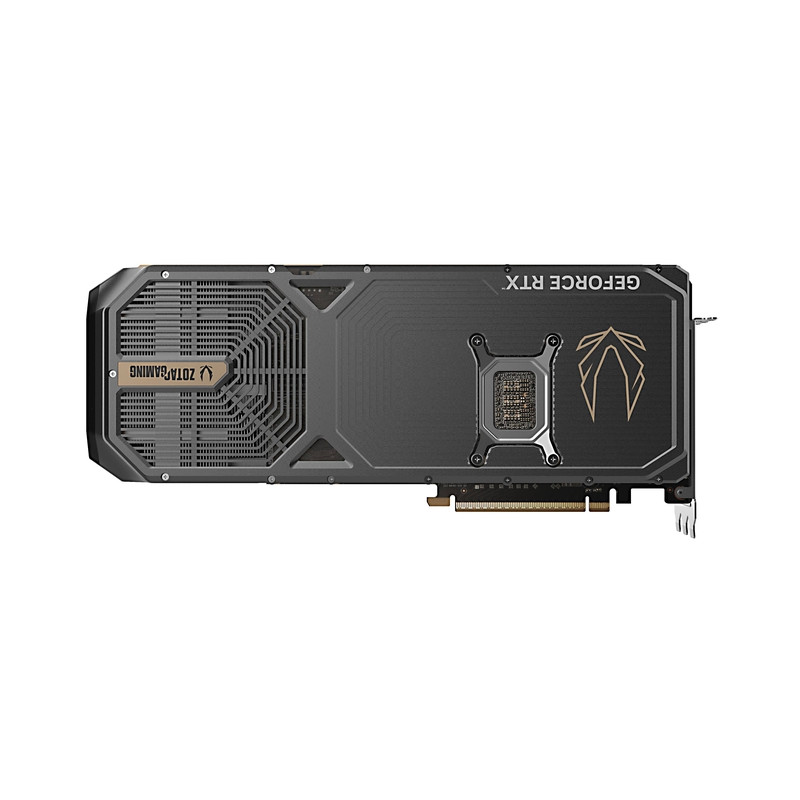

RTX5080 16GB Zotac AMP Extreme Infinity Ultra ZT-B50800BU-10P
Part# / SKU :
ZT-B50800BU-10PProduct Warranty :
Three Year WarrantyRTX5080 16GB Zotac AMP Extreme Infinity Ultra ZT-B50800BU-10P
A graphics card based on NVIDIA GeForce RTX 5080 with 16GB GDDR7. Clock specification: 2730 MHz. Display connections: 3 x DisplayPort 2.1b; 1 x HDMI 2.1b. Check the listed dimensions, power connections and system requirements when planning your build.
Technical specifications
| GPU | NVIDIA GeForce RTX 5080 |
|---|---|
| CUDA Cores | 10752 |
| Video Memory | 16GB GDDR7 |
| Memory Bus | 256 bit |
| Boost Clock | 2730 MHz |
| Memory Clock | 30 Gbps |
| Host Interface | PCI Express 5.0 x16 |
| HDCP | 2.3 |
| Maximum Displays | 4 |
| Recommended PSU | 850 W |
| Maximum Power Consumption | 360 W |
| Power Input | 1 x 12v-2x6 power input |
| Card Length | 332.1 mm |
| Card Height | 137.5 mm |
| Card Width / Slot | 3.5 slot (69.6 mm) |
| OpenGL | 4.6 |
| DirectX | 12 Ultimate |
| Vulkan | 1.4 |
| EAN | 8886307700476 |
| MPN | ZT-B50800BU-10P |

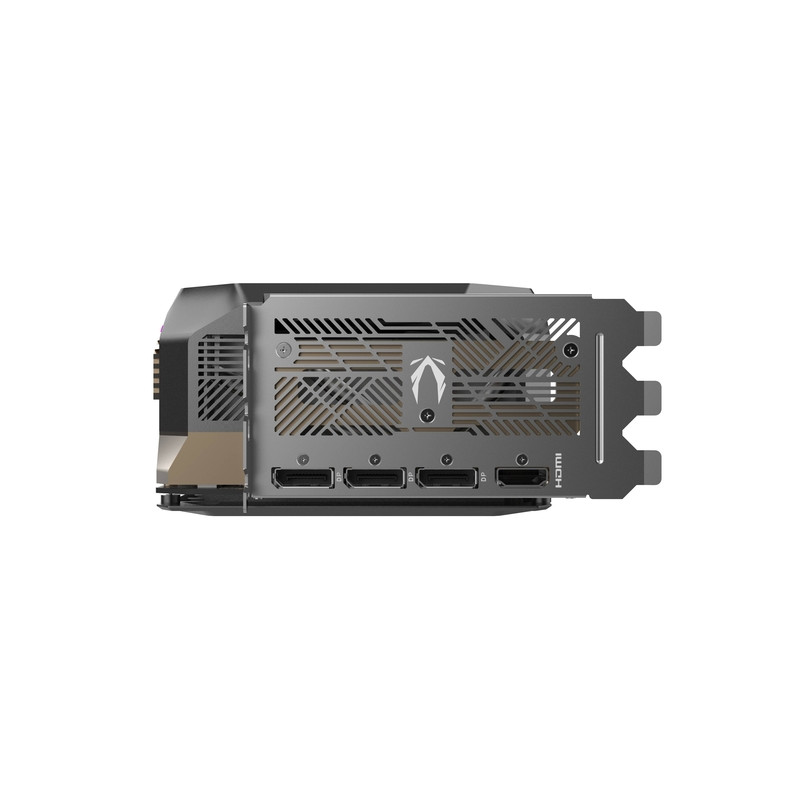

| Display Outputs | 3 x DisplayPort 2.1b; 1 x HDMI 2.1b |
| Architecture | NVIDIA Blackwell |
| Cooling Fans | 3 x 100 mm BladeLink |
| Cooling System | IceStorm 3.0 |
| Tensor Core Generation | 5 |
| Ray Tracing Core Generation | 4 |
| DLSS Support | NVIDIA DLSS 4 |
| Fan Stop | FREEZE fan stop |
| Backplate | Metal Die-Cast backplate |
| Vapor Chamber | Yes |
| Lighting | Tri-Zone SPECTRA 2.0 ARGB lighting |
| Graphics Processing Unit | NVIDIA GeForce RTX 5080 |
| Memory | 16GB GDDR7 |
| Interface | PCIe Gen 5 x16 |
