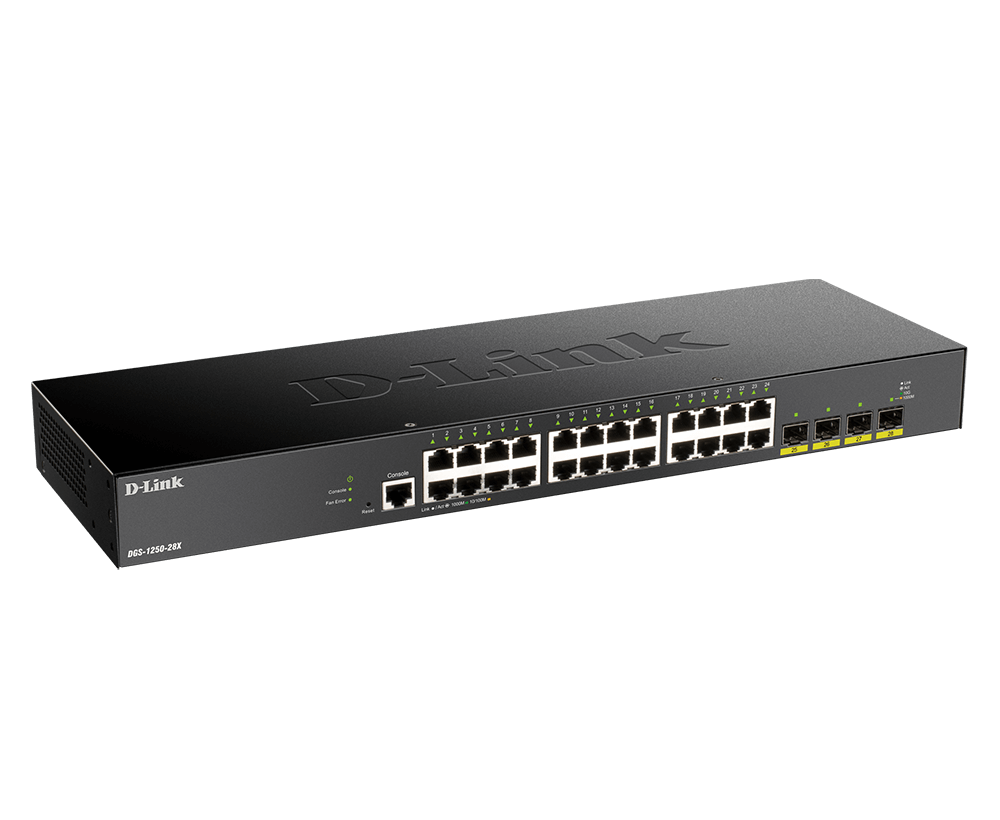

DLink DGS-1250-28X 1000MBPs Smart Switch
28-Port Smart Managed Switch with 10 Gigabit Uplinks
DGS-1250-28X
- 24 x 10/100/1000BASE-T ports
- 4 x 10G SFP+ ports
- Lite L3 Static Routing
- Advanced security features, IMPB, 802.1X Authentication
- Dual Image & Configuration
- Supports STP/RSTP/MSTP
- Full CLI
- QoS Enablement
Part# / SKU :
DGS-1250-28XProduct Warranty :
Three Year Limited WarrantyDGS-1250-28X
Manufacturer specifications for this model.
Sources: Manufacturer specifications; Manufacturer specifications
| Manufacturer model | DGS-1250-28X |
|---|---|
| Product type | Ethernet switch |
| Interfaces | 24 x 1GE 4 x 10G SFP+ |
| Switch Capacity | 128 Gbps |
| Max. Packet Forwarding Rate | 95.24 Mpps |
| Dimensions | 440 x 140 x 44 mm (17.32 x 5.51 x 1.73 in) |
| Surge Protection | All Ethernet RJ-45 ports support IEC61000-4-5 6 kV surge protection |
| FAN | 1 Smart Fan |
| Operating temperature | -5°C to 50°C (23°F to 122°F) |
| Storage temperature | -20˚C to 70˚C (-4˚F to 158˚F) |
| Operating humidity | 0% to 95% relative humidity |
| Storage Humidity | 0% to 95% relative humidity |
| Console Port | RJ-45 console port |
| Power Supply Type | Internal |
| Ethernet speed | 1Gbps |
| Ethernet ports | 24 |
| MAC address capacity | 16K |
| Static MAC addresses | 256 |
| Packet forwarding rate | 95.24 Mpps |
| Packet buffer | 12 Mbits |
| Transmission method | Store-and-forward |
| Jumbo frame | Up to 12,000 bytes |
| Common A1/B1 network feature | IGMP v1/v2/v3 Snooping |
